Dirt Bucket Grapple

product made in USA
1 year warranty
custom fabrication available

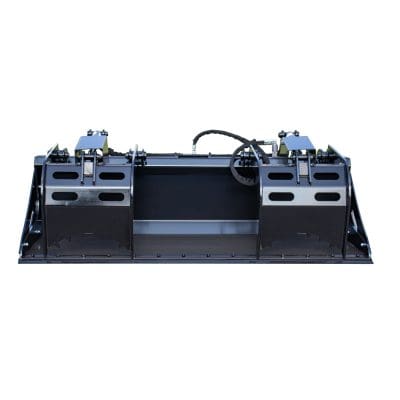

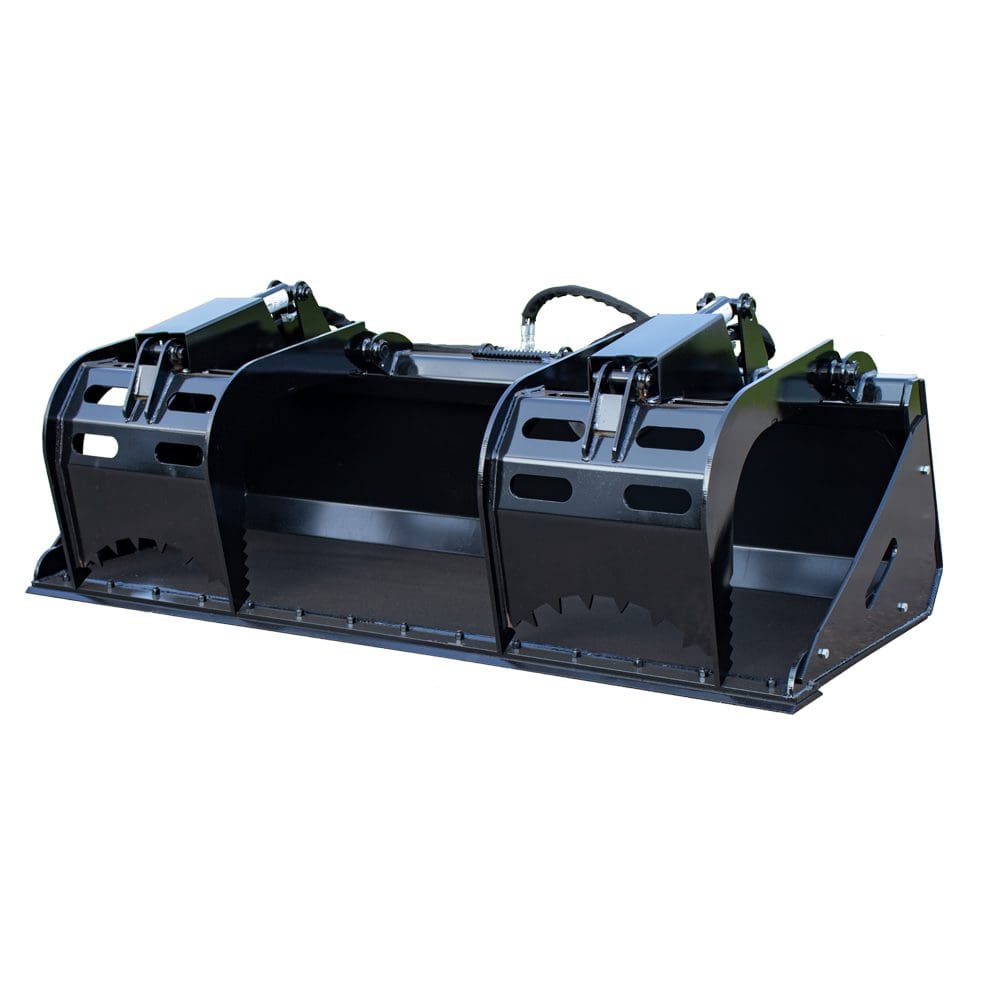

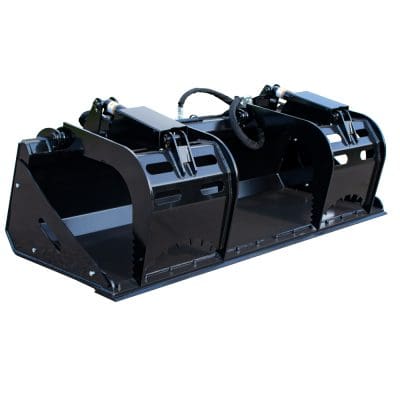

The Prime Dirt Bucket Grapple is the perfect attachment to use when you want to pick up a large amount of debris and contain it inside of the bucket, leaving no debris behind. The grapple bucket is fabricated with your choice of either 3/16” or 1/4″ thick steel. It has ½” thick bolt-on removable side plates. Our under strap supports are 1/2″ thick by 2” or 3” (depending on bucket thickness) and we run 6 of them. The Dirt Bucket Grapple comes with a fully welded on ½” cutting edge but you have the option of getting a ½” bolt-on reversible cutting edge. The grapple sides are fabricated with ½” thick steel and the grapple flats are fabricated with 5/16” thick steel. The grapples work independently to secure uneven loads. Each grapple has visibility cut outs so there are no blind spots when the grapples are open.
This skid steer attachment is also know as:

Features

  • Universal quick attach plate
  • Greaseable pivot points
  • 3/16” or 1/4“ bucket material available
  • 1/2" fully welded on cutting edge (better for digging)
  • Optional 1/2" bolt-on reversible cutting edge (better for scraping)
  • 1/2″ end plates for bolt-on side to attach
  • 1/2″ thick steel grapple sides
  • 5/16” thick steel grapple flats
  • Twin 3,000 psi hydraulic cylinders
  • 1/2″ x 2″ or 3” under support straps, depending on bucket thickness

Specifications

  • Option #2: 1/2" Bolt on removable side plates
  • Option #2: 1/4″ Bucket Material
