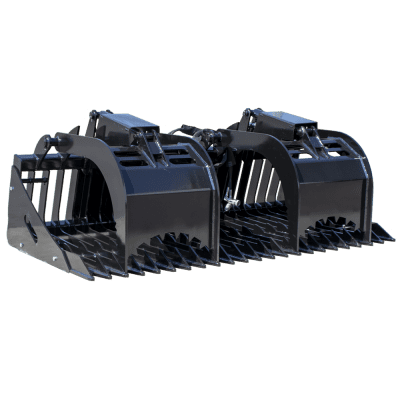

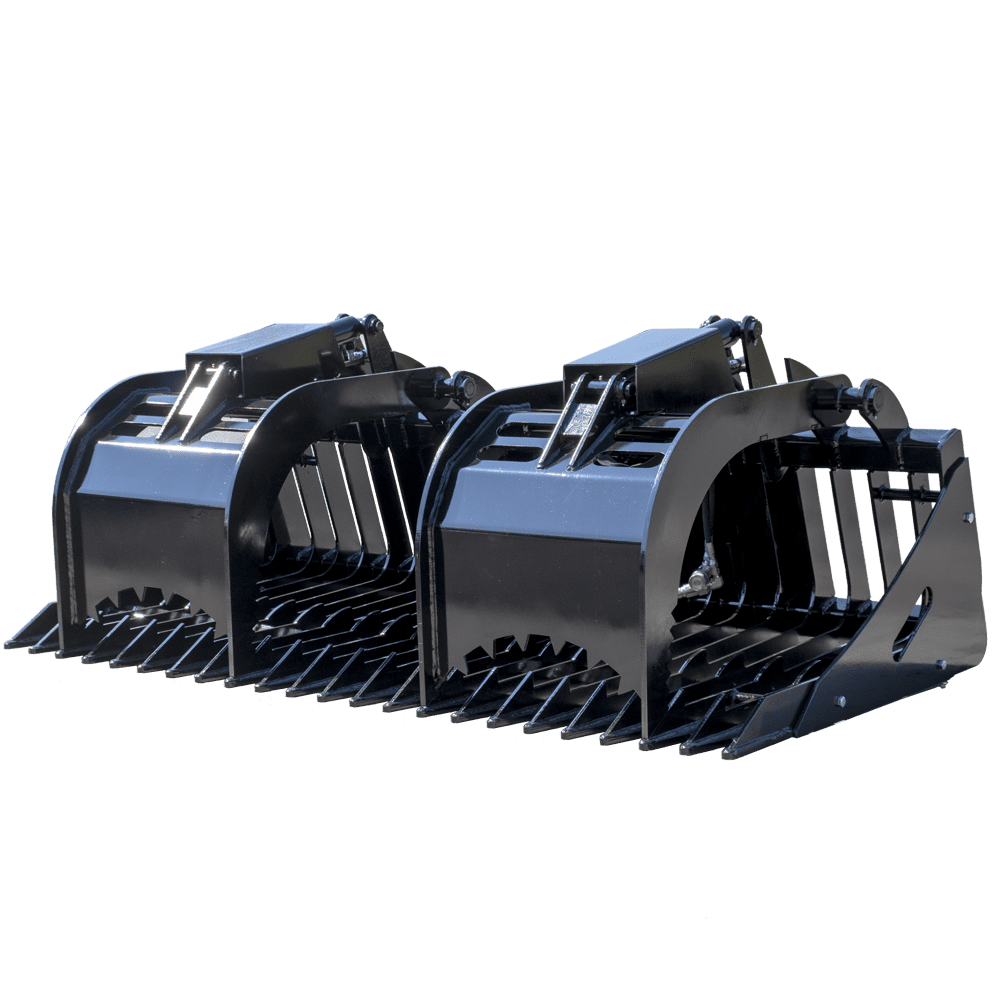

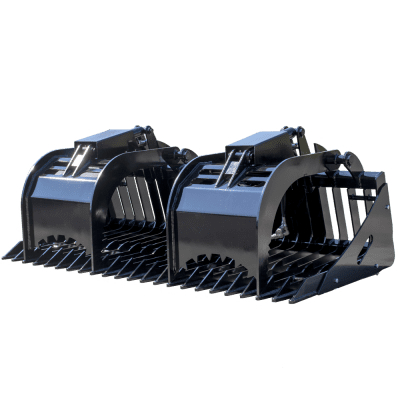

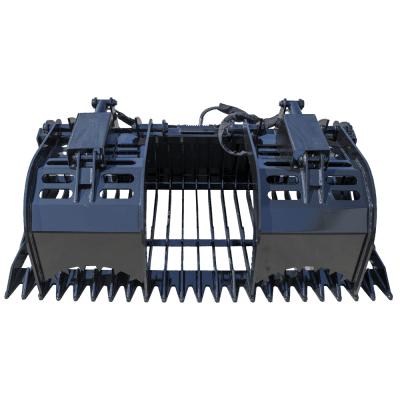

Rock and Brush Grapple

product made in USA
1 year warranty
custom fabrication available

The Rock and Brush Grapple features a rock bucket that has 2 grapples, each with a 3,000 psi cylinder that works independently to grab objects. The grapple’s tines are constructed using 3/8“ steel and are placed 3” apart. The thickness of each tine, along with narrower spacing between them enables dirt to fall through while holding onto the larger fragments of material. The ½″ Grade 50 hardened steel cutting edge provides additional strength to the bucket.

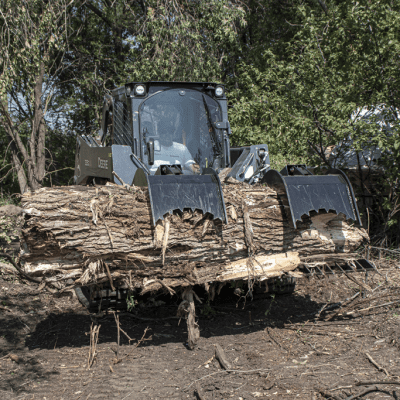

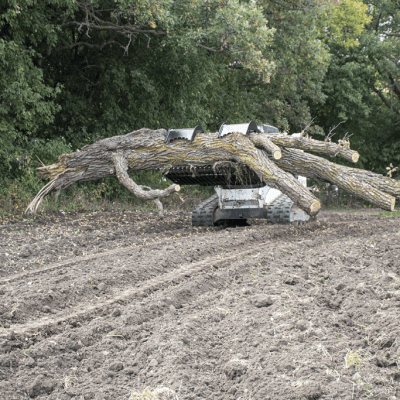

Every Prime Rock & Brush Grapple comes with bolt-on removable side plates that you are able to keep on when moving smaller material or remove in order to move large objects, such as trees or lumber. We reinforce our outside tines in 3 different locations to provide support and allow you to take the side plates off and use the bucket without bending, twisting or breaking the tines.



Add optional bolt-on cylinder covers to protect your cylinder up to 95%! Our Prime cylinder covers protect more than just the cylinder; they protect all three components of the cylinder (fittings, ram and seal).

Features

  • Universal quick attach plate
  • Bolt-on removable side plates
  • Commercial-grade steel
  • Reinforced outside tines
  • Greaseable pivot points
  • Visibility cut outs on grapple
  • Optional bolt-on cylinder covers

Specifications

  • Common sizes: 62",68”,74",78" and 84"
  • Spacing between tines: 3"
  • Side plate width: 1/2"
  • Steel tine width: 3/8"
  • Grade 50 cutting edge: 1/2"
